mini-MAX
Overview

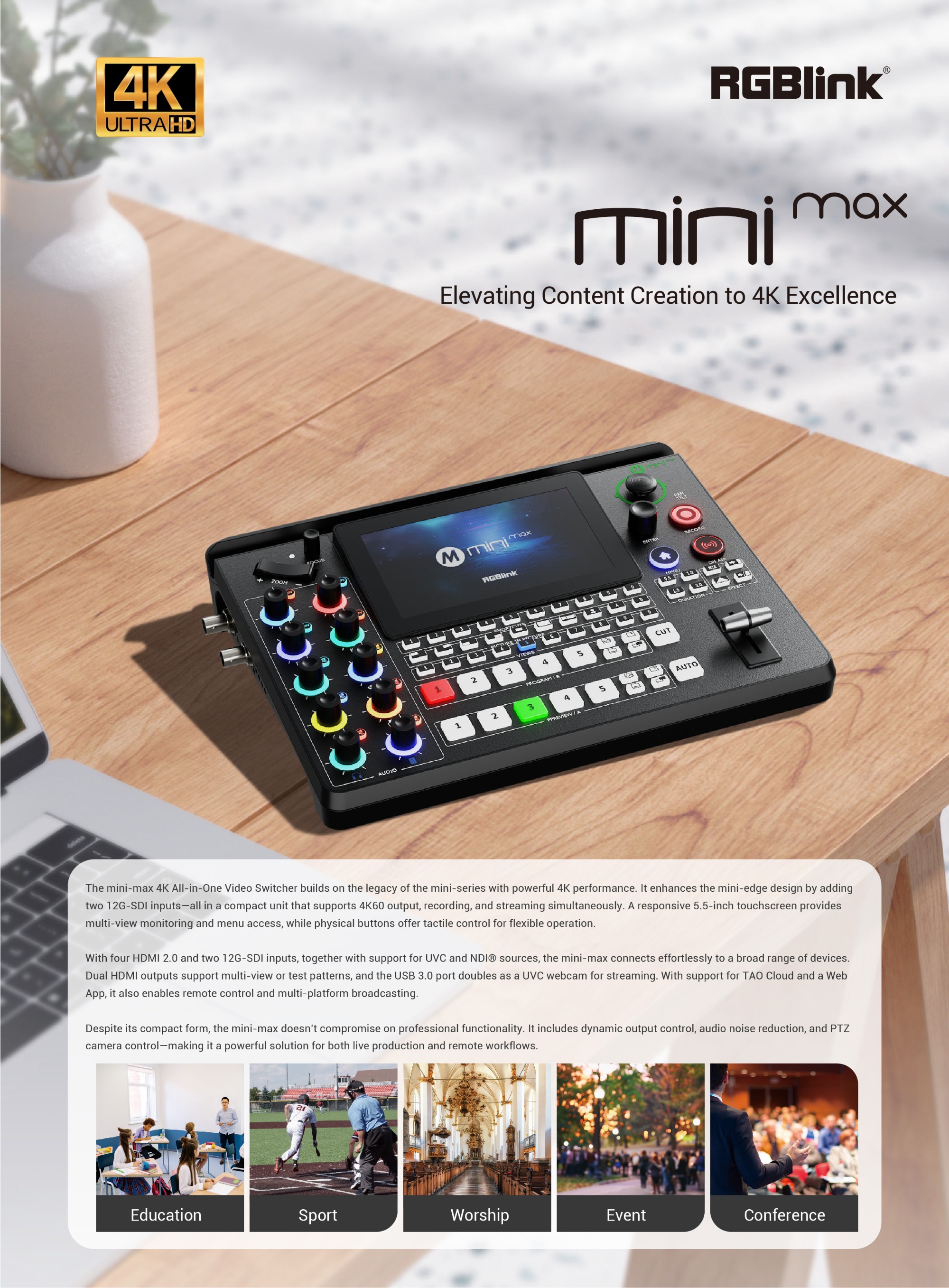

The mini-max 4K All-in-One Video Switcher continues the legacy of the mini-series with powerful
4K performance. Building on the foundation of the mini-edge/mini-edge SDI, it retains all their
functionalities while introducing a major upgrade: two broadcast-grade 12G-SDI inputs, in
addition to its native 4K60 HDMI® inputs. This compact device integrates 4K60 output, recording,
and streaming into one powerful unit, delivering an exceptional ultra-high-definition visual
experience. The responsive 5.5-inch touchscreen enables both menu navigation and multi-view
monitoring, while physical buttons provide tactile control for flexible operation across various
scenarios.

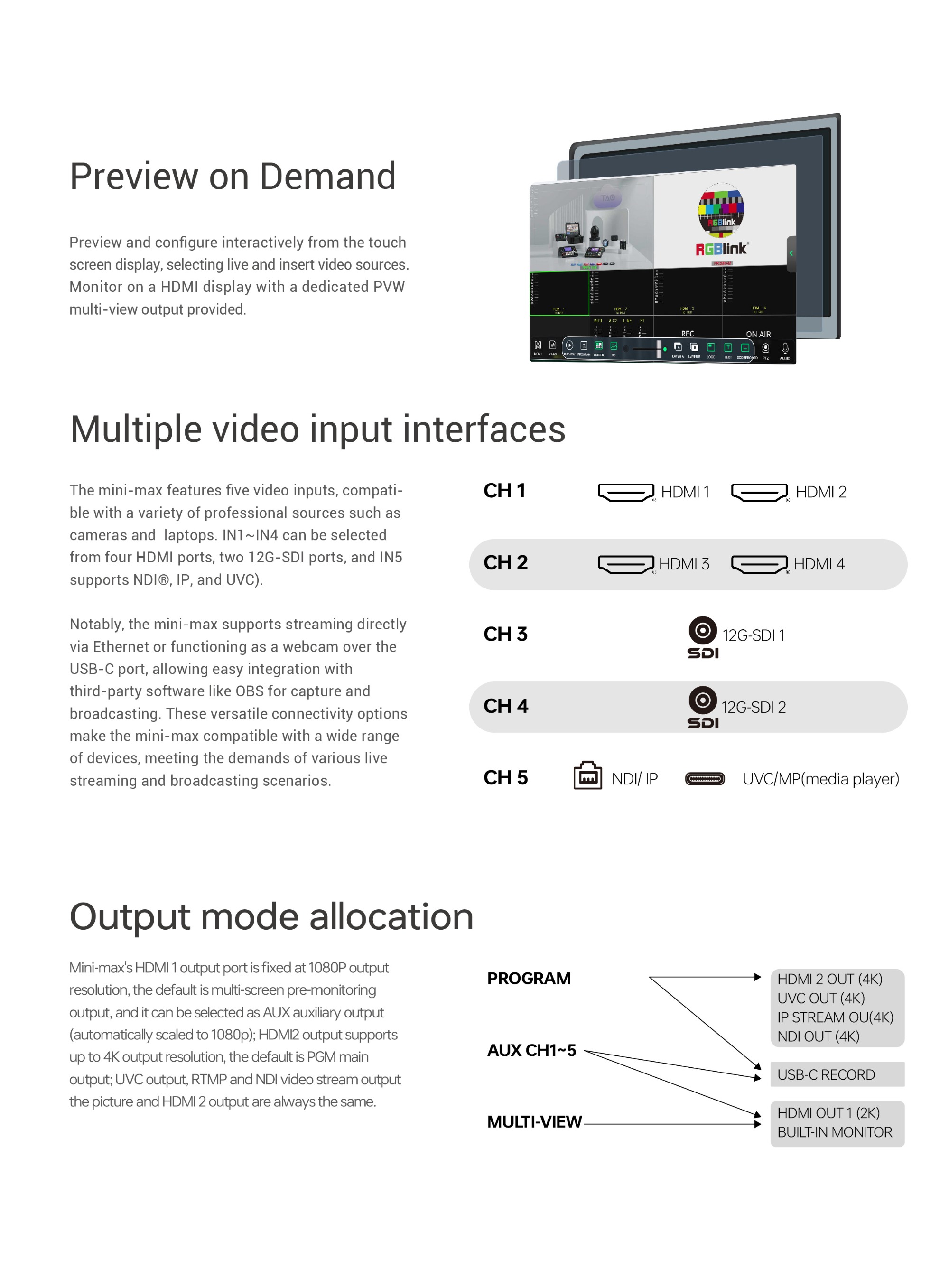

In terms of connectivity, the mini-max offers two 4K HDMI inputs (choose 2 from 4 HDMI
source) and two 12G-SDI inputs, along with support for 4K60 UVC and NDI® video sources. It

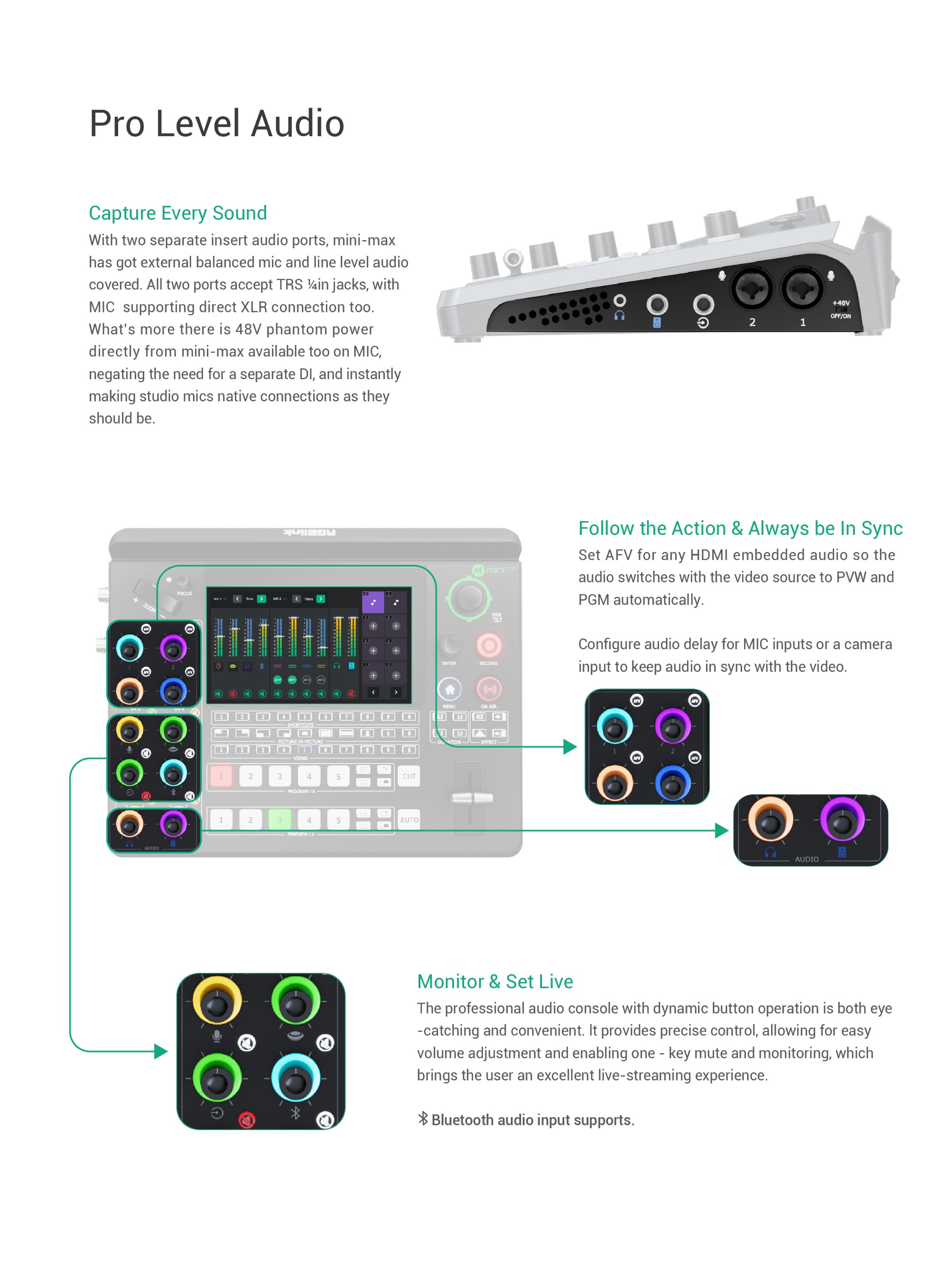

also supports both digital embedded audio and analog input, covering a wide range of audio and
video equipment needs. On the output side, dual HDMI ports support multi-view preview. The
USB 3.0 port enables 4K60 video capture and can function directly as a webcam for
multi-platform streaming. Combined with support Web App, it enables advanced functions such
as remote device management and synchronized live broadcasting.
Despite its compact design, the mini-max enhances professional capabilities with support for
dynamic output control, audio noise reduction, and PTZ camera control—making it a versatile
solution for both live production and remote workflows.
Notes：
1. For on-device streaming, please ensure the upstream bitrate is not less than 100Mbps
when streaming to 4 platforms at the same time. For upstream bitrate lower than
100Mbps, streaming to one platform is a better choice for stable on air and good video
quality.

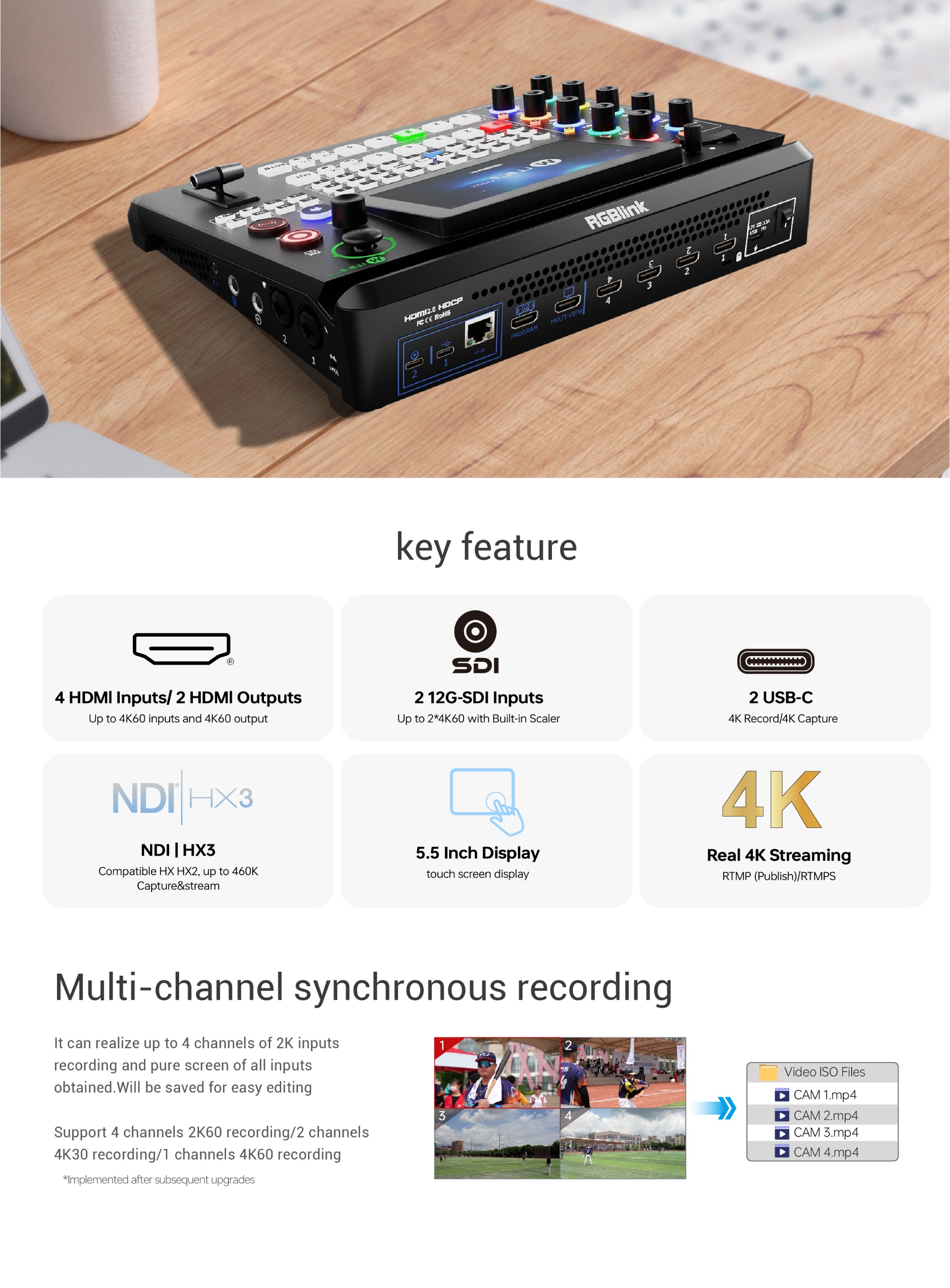

Key Features
• 5.5-inch touchscreen for icon menu control, preview, and working status display
• 9 input connectors ( 4 x HDMI 2.0, 2 x 12G-SDl, 2K UVC, MP4, and NDI)
• 6-CH customizable video inputs
• Maximum 8 channels for audio mixing
• 1-CH HDMI 2.0 main output and 1-CH HDMI 1.3 for preview

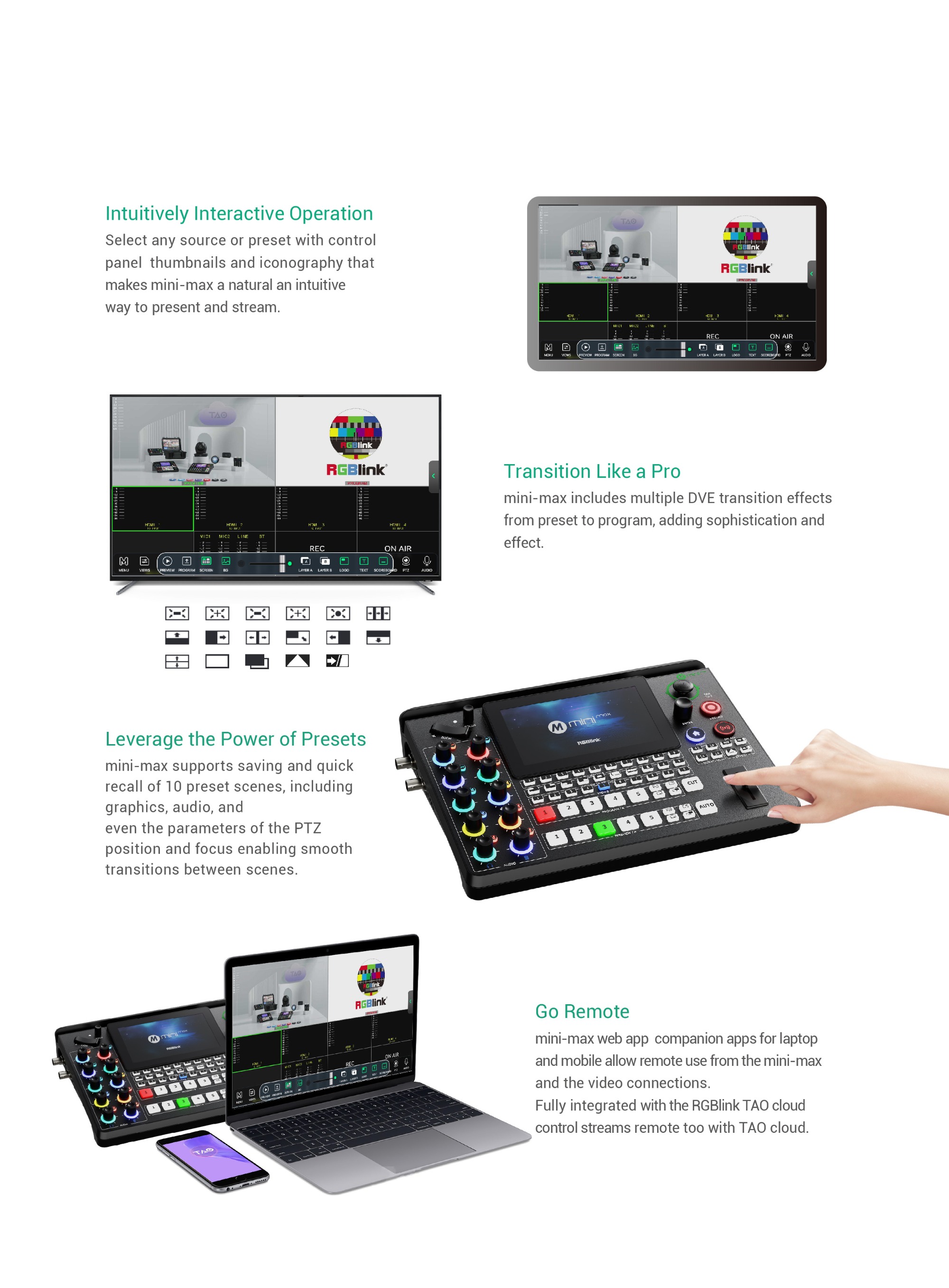

• Cut mode and preview transition mode support
• USB 3.0 4K60Hz video recording with a maximum bitrate of 32Mbps.
• UVC recording which is USB and UAC devices compatible (including AI mini )

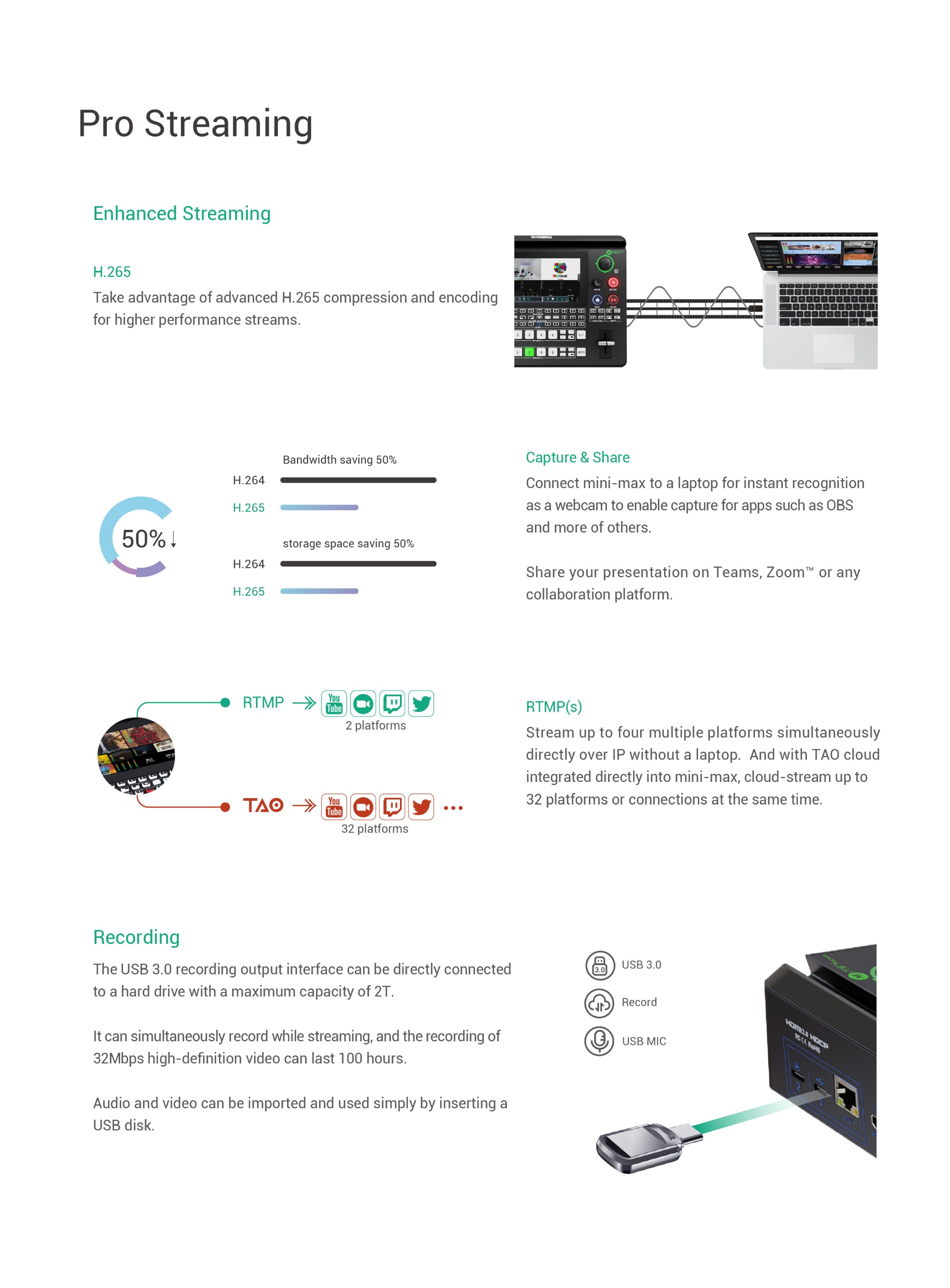

• RTMP(s)/NDI streaming via Ethernet port, managed by TAO Cloud
• USB 3.0 UVC 4K capture and outputs via third-party platforms like OBS

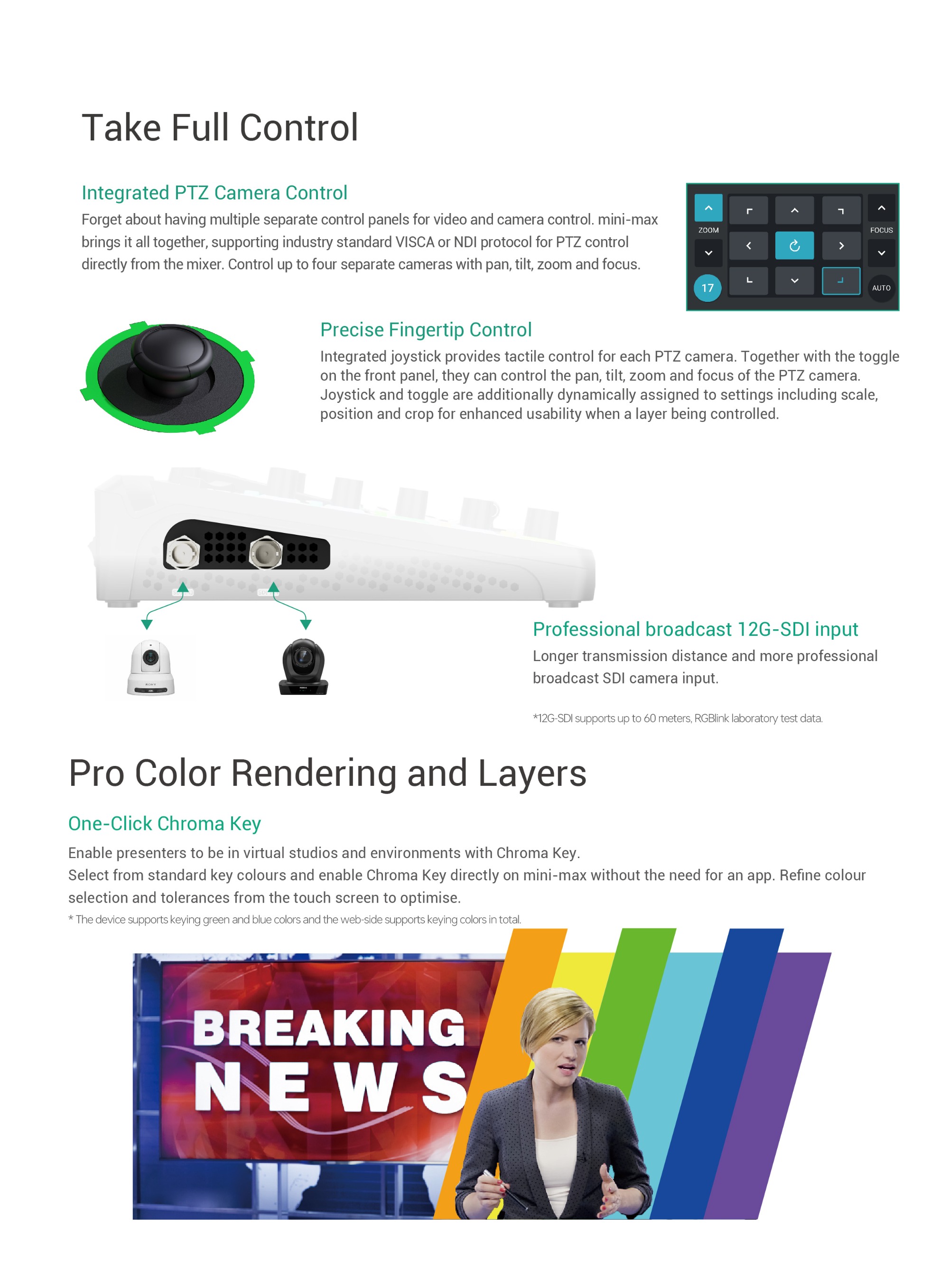

• Independent control of PTZ, zoom, and focus of multiple PTZ cameras;
• Chroma key support (green and blue) and Luma key support
• Open control protocol for third-party control and integration.
Note:
PRE ORDER PRODUCT Remark:
This product has already entered sampling and the sample should complete within the next 4-12 weeks at most.
